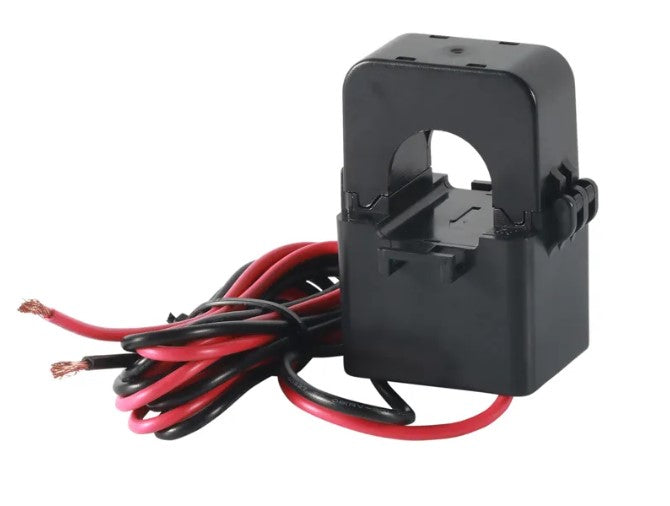

100 Amp (0-5A) Current Transformer (CT)

AC Current 100 Amp AC Current Transformer (CT) is mounted around a current carrying wire to measure AC Amperage. This CT provides 0-5 Amp output proportional to the measured current and is used with the PAN-14 or PAN-42 sensors.

The result is accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. These CTs should be ordered in sets of 3 for measurement of a 3 phase circuit or as individual units for single phase monitoring.

This component is meant to be a part of an overall electrical sub-metering strategy.

• UL recognized
• Split-core design for fast, easy installation

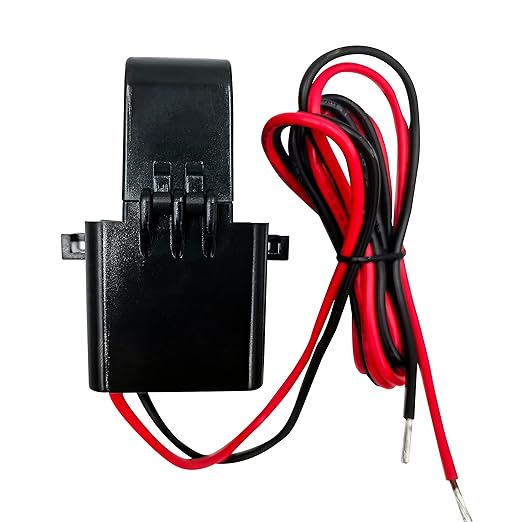

• 3 ft. 16 AWG leads

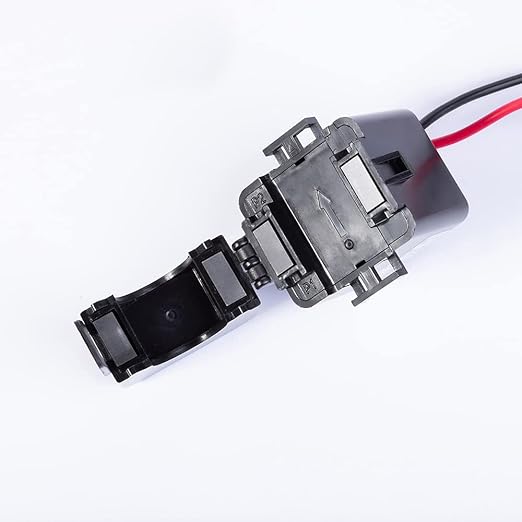

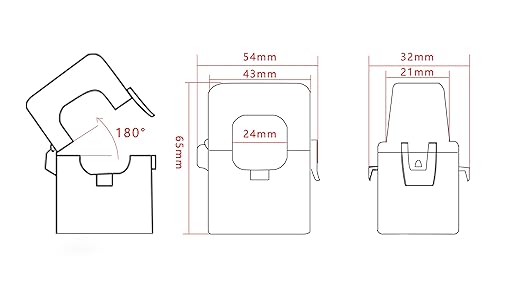

• Opens through swivel hinge. Inside dimension is 1.0" x 1.0"
• Rated input from 1 Amp to 100 Amp
• Output 0 - 5 Amps at rated current
• Operates from 30 Hz to 1,000 Hz
• Phase angle < 2 degrees measured at 50% rated current
• Linearity accuracy ± 1%
• UL, c(UL) recognized, CE, and RoHS compliant
• Accuracy at 10% to 130% of rated current
