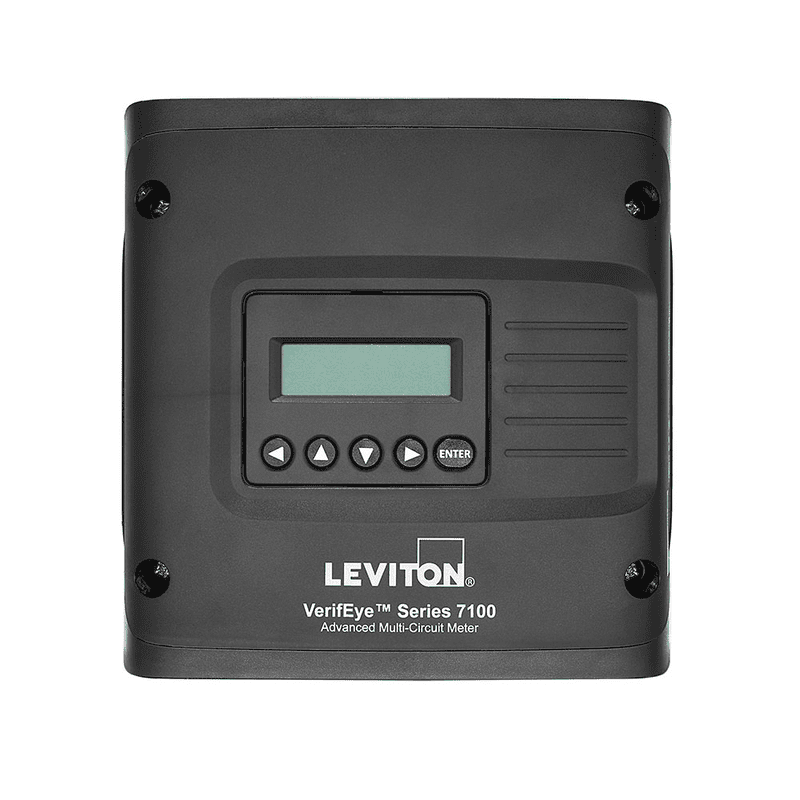

Leviton 71D12 S7100 BCM 12 Inputs With Display

Overview

The Leviton VerifEye 71D12 Series 7100 is a 12-circuit advanced branch circuit monitor, ideal for submetering applications requiring more than a single 3-phase meter but less than the full 48-circuit capacity.

Key Features

• Monitors up to 12 branch circuits on a single meter board
• 90 to 600 VAC, 5 to 4000 A, 50/60 Hz
• 0.2% accuracy (ANSI C12.20 Class 0.2)
• LCD display
• NEMA 1/IP30 enclosure

Specifications

• Dimensions: 9.87 x 3.14 x 9.75 in (W x D x H)
• Phase: 3-phase
• Series: 7100
• Standards: ANSI C12.20, CE EN 61000-6-4 Class A, IEC, NIST Traceable, RoHS, UL Listed/Recognized

Applications

• Commercial & industrial submetering
• Retail and higher education/campus metering
• REIT management and data centers
• Tenant submetering and indoor applications
