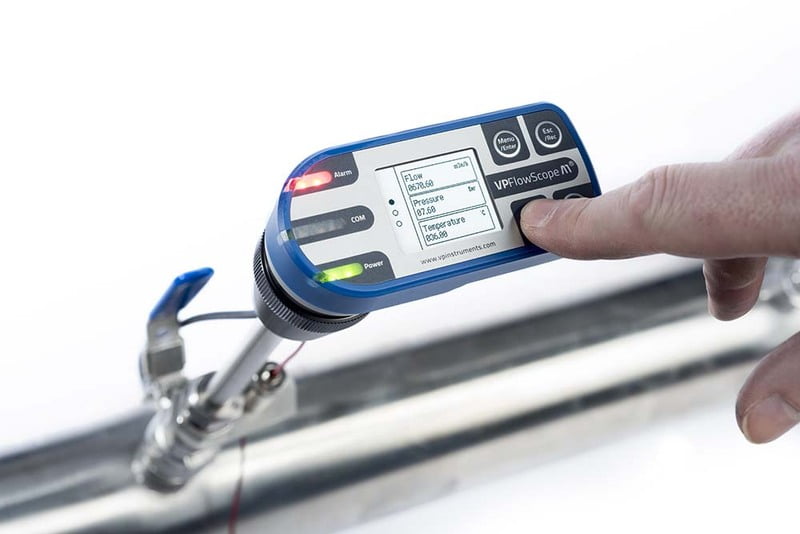

VPFlowScope M start kit

The VPFlowScope® M is the 4-in-1 insertion flow meter for compressed air. It can be installed under pressure and measures bi-directional flow, pressure, temperature and totalized flow simultaneously.

The VPFlowScope M is the next step in gas measurement. You are industry 4.0 ready, with the additional Ethernet output. With the VPFlowsScope M re-calibration is history: simply exchange the patented VPSensorCartridge!

The VPFlowScope M start kit offers all you need to start measuring today, including the Transmitter with built-in data logger, cables, and software. Start measuring today with the plug and play start kit!

Features/ Benefits

• 4-in-1 instrument: bi-directional flow, pressure, temperature, totalized flow
• For compressed air
• Patented VPSensorCartridge®: no more recalibration required
• Ethernet interface: Industry 4.0/IOT ready
• Ultra-compact size and low weight
• Ethernet (Modbus/ TCP)
• RS485 (Modbus RTU)
• 4 .. 20 mA linearized, pulse mode or alarm output
• USB interface for configuration and downloading of data log files
• TFT color display
• Built-in data logger
• Bi-directional

Applications of this compressed air flow meter

• Demand-side compressed air monitoring
• Air audits
• Submetering of compressed air
• Ring networks (bi-directional)
• Industrial gas monitoring (air, nitrogen, carbon dioxide, argon, and other dry, noncorrosive industrial gases)
• Cost allocation
• Leak detection

Your order will include:

• VPFlowScope M Transmitter with display + data logger
• VPSensorCartridge (0..150 mn/sec, 0..10 bar, 0..60 deg C)
• Bi-directional option
• Mini USB cable
• 24V Power supply
• Compression fitting with proprietary, adjustable safety cable
• Cable 5m/16.4ft for ethernet with 4-pin M12 and RJ45 connector
• Rugged blue explorer case
• ISO Calibration report
• English user manual
• VPStudio software (downloadable from www.vpinstruments.com)
